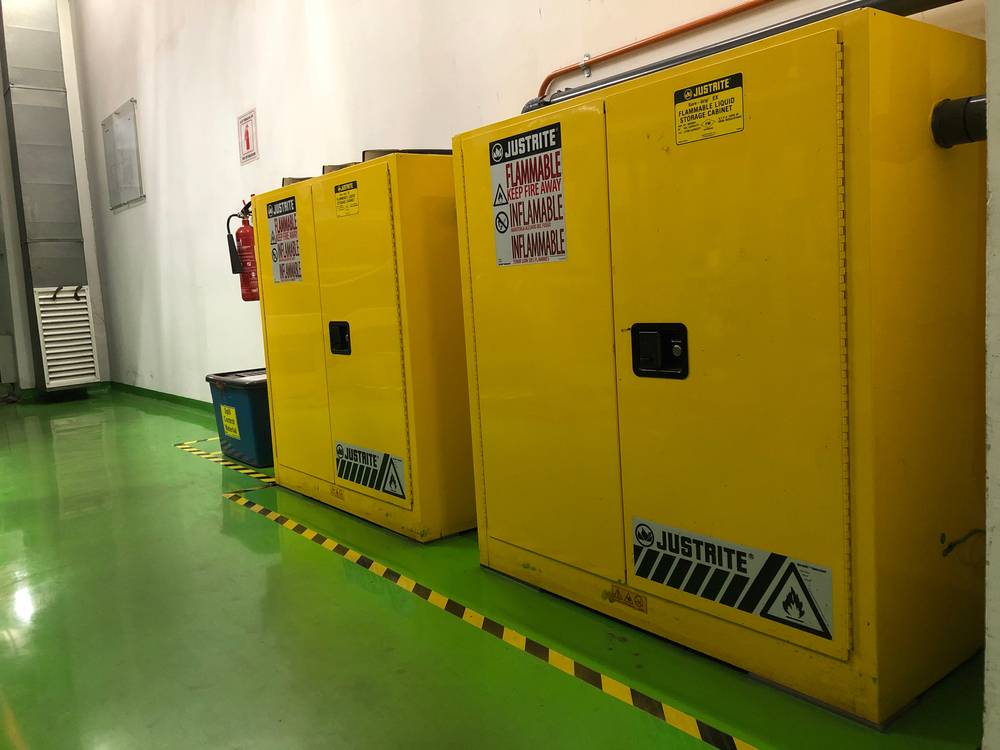

Fire-Resistant Storage Cabinets: How Do They Work?

A fireproof cabinet is a safety cabinet that stores flammable substances to protect them from fire in the case of an accident. The use of this type of furniture is determined by NFPA and OSHA standards.

Let’s see what conditions fireproof cabinets must meet to store flammable products, how to store these substances safely, and how to act in the event of a fire.

How Fireproof Storage Cabinets Should Look Like?

First of all, we must know that flammable substances are those that, when receiving a spark or being in an environment that is too hot, tend to start a combustion.

The requirements for the storage, construction, and behavior of fireproof cabinets are determined by OSHA standards. Based on the regulations, we can define what a fireproof cabinet must contain for flammable products such as solvents, paints, or disinfection products:

• Fire resistance. They must be approved and certified with a 90-minute fire resistance whenever it is necessary to form an independent fire sector.

• Automatic hydraulic door closure. To facilitate product handling, the cabinets have a 90° door loc, and their doors must always be closed.

• Self-closing ventilation openings. Cabinets must have air inlet and outlet ducts that close automatically in the event of a fire. For this purpose, they have a 4-inch opening at the top.

• Retention basin. Its retention capacity must be at least 10% of the volume of all stored containers.

The cabinet is made of heavy-duty steel plates with a corrosion-resistant wrinkle powder coating applied by electrostatic spraying. The interior of the cabinet is lined with multiple layers of fire-resistant and heat-insulating materials to achieve fire protection.

In the event of a fire, special heat-sensitive materials in the door gaskets and all seams will automatically expand to fill the gaps, thus ensuring the cabinet remains sealed.

Here are example features of fire-resistant storage cabinets:

• The flammable safety cabinet is made of galvanized steel, which resists rust and certain chemicals. Keep a long service life.

• There is a fully welded steel body with no rivets, screws, or spot welds, durable, double-rolled steel design makes it more robust. The air space between is filled with fireproof material, so you can use it to store the flammable liquid.

• The flammable storage cabinet adopts double cold rolled steel with 1-½” air space for extra strength to reduce the risk of fires. It is equipped with a grounding conductor to prevent static and explosions.

• Three-point handle locking system helps keep cabinet doors securely closed, to help secure contents and prevent hazards, with solid locking bolt and hinged door.

• A removable bottom sump works in conjunction with perforated inserts to effectively collect any excess liquid from the shelves. Containers placed on the perforated inserts are kept above the liquid collected in the sump.

• Adjustable leveling feet on the bottom of the cabinet allow it to remain stable even on uneven surfaces.

• The cabinet includes a static grounding port for easy connection to a grounding cable.

How to Safely Store Flammable Liquids

The types of storage that we can find for flammable substances in mobile containers are:

• Open, closed warehouses and modular containers.

• Safety cabinets for flammable materials.

In each case and depending on the type of flammable substance to be stored, the regulation establishes mandatory standards in order to store these substances safely. These are:

• Flammable gases must be stored in a cabinet with external ventilation. The maximum quantity of flammable liquids to be stored is 100 gallons, with volume restrictions depending on the type of substance to be stored.

• The maximum amount of flammable solids to be stored is 100 gallons without restrictions.

• A fire extinguisher must be placed in the immediate vicinity of the cabinet.

To protect workers and the environment they work in from hazardous substances, it is essential to properly store flammable products in safety cabinets with the specified characteristics.

What Advantages Does a Fireproof Cabinet Offer for Flammable Products?

The main advantages that we can find in these fireproof cabinets are:

• They are certified fire-resistant. International standards establish the tests that these cabinets must pass.

• In emergency situations and in the event of a fire, the doors close automatically when the ambient temperature reaches 120 °F.

• The same applies to the ventilation openings; they close automatically when high temperatures are reached outside.

• They have a retention basin located on the lower level in case of possible spills of substances.

• They have different shelves that support the maximum load specified by the manufacturer in case of fire.

How a Fire-Resistant Safety Cabinet Works

Fireproof cabinets form an independent fire sector to protect the contents and provide response time in emergency situations or in the event of a fire. In these cases, when the outside temperature exceeds 120 °F, the fireproof cabinets close their doors automatically, as well as their ventilation openings.

This flammable storage cabinet adopts double cold-rolled steel with air outlets for strength and reducing fire hazards. The fire cabinet is made of galvanized steel, which can resist corrosion and remain in service for a long time. Internal and external ventilation can effectively reduce harmful gases in the cabinet. And the leak-proof sump is an excellent detail to prevent hazardous liquids from leaking out.

Cabinets are equipped with ground conductors to prevent static and explosion. The three-point key lock helps secure contents and prevent hazards. It is widely used in the home, commercial industry, and business industries to store alcohol, glue, gasoline, chemicals, etc.

Frequently Asked Questions

Why Is It Important to Use Specific Cabinets for Storing Flammable Products?

Fireproofing storage cabinets are designed to contain and minimize the risks related to handling hazardous substances, such as fires and explosions. They are constructed of fire-resistant materials and have safety features, such as automatic door seals, which prevent the spread of flames and the access of oxygen in the event of a fire.

In addition to fire protection, flammable cabinets help comply with international safety regulations and standards, such as those set by OSHA and NFPA. Not only does this prevent legal penalties, but it also demonstrates the organization’s commitment to the safety and well-being of its employees and the work environment.

How Should Flammable Storage Cabinets Be Maintained and Cleaned?

Cabinets should be inspected regularly for any signs of wear or damage, especially to door seals and spill containment structures. Follow the manufacturer’s recommendations for any repairs or replacement of defective parts.

Cleaning should be done with compatible products that do not react with the stored chemicals. Internal and external surfaces should be cleaned, making sure to remove any chemical residue that may have been spilled. Keep ventilation systems clean and functional to ensure proper dispersion of flammable vapors.

Where Is It Best to Locate a Flammable Storage Cabinet in the Laboratory?

Ideally, these cabinets should be placed in well-ventilated areas. Keep away from ignition sources such as open flames, electrical equipment, and hot surfaces. They should also be located in an area that is easily accessible to workers but away from main evacuation routes so as not to cause obstruction.

Conclusion

A flammable storage cabinet is a specialized piece of equipment designed to safely store flammable chemicals in laboratory, industrial, and commercial environments. These cabinets are constructed of fire-resistant materials to minimize the risk of fire and explosion. They are designed the way to provide a safe, controlled barrier for stored products.

These cabinets not only offer a safe storage solution but also help maintain an organized work environment. This guide explains the advantages of fire-resistant storage cabinets and what features they come with.
